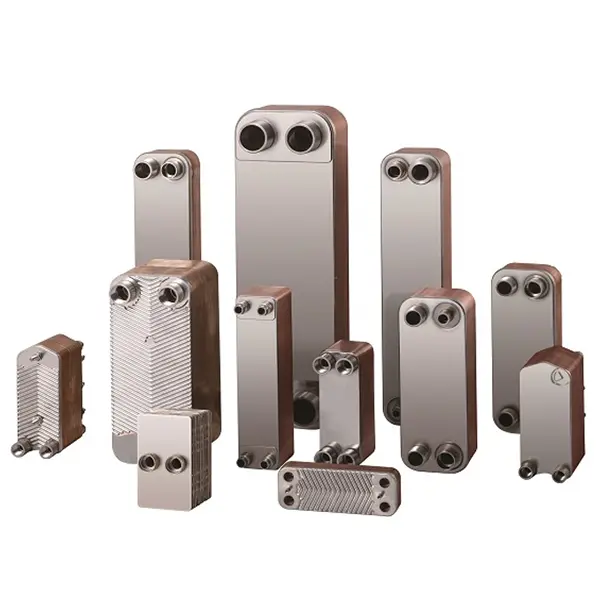

Brazed Heat Exchanger-BPHE
— —
Brazed Heat Exchanger-BPHE
Brand: UNO
Product origin: China
Delivery time: 7-15days
Product Parameters
UNO Brazed Plate Heat Exchangers efficient design allows them to provide more heat transfer using less space,making them well suited to a variety of installations,including:Radiant Floors,Domestic Hot Water,Pool Heating,HVAC,Solar Heating,District Heating,Domestic/Commercial Boilers.We have rich OEM experience and can solve various problems for you，we also can provided technical service such as technical consultation, equipment upgrade, capacity expansion scheme, maintenance and cleaning of the equipment.
Our Brazed Plate Heat Exchangers offer the highest level of thermal efficiency and durability in a compact, low cost unit. The corrugated plate design provides very high heat transfer coefficients,resulting in a more compact design. The units stainless steel plates are vacuum brazed together to form a durable, integral piece that can withstand high pressure and temperature.
● Easy to install and move
● Readily expandable and easy to inspect or clean
● With studded connection, no welding is required
● Opening or closing the unit does not require disconnecting the piping
● No special tools needed to tighten plate pack
● Tightening bolt design allows opening and closing the unit from frame plate
● UNO has vertical flow, so inlet and outlet connections are above and below each other and on the same plane for easy installation
● Studded connections withstand higher piping loads than nozzles
By using a brazing process we eliminated the need for gasketed or rolled joints commonly found in traditional exchangers. This allows for higher operating pressures and temperatures with no maintenance and no leaks. The corrugated plates easily handle highly viscous fluids, turbulating them for maximum efficiency. Corrosion resistant materials ensure a long operating life.
Our Brazed Plate Heat Exchangers are approved according to pressure equipment PED 2014/68/EU,Stainless Steel 316L plates. Copper brazed material.Design pressures up to 30 Bar.
Maximum design temperature up to 232°C.Minimum design temperature to -190°C.From 1/2 inch to 4 inch. Standard connection options include NPT, SAE Flanged and Sweat. Custom connections available.
